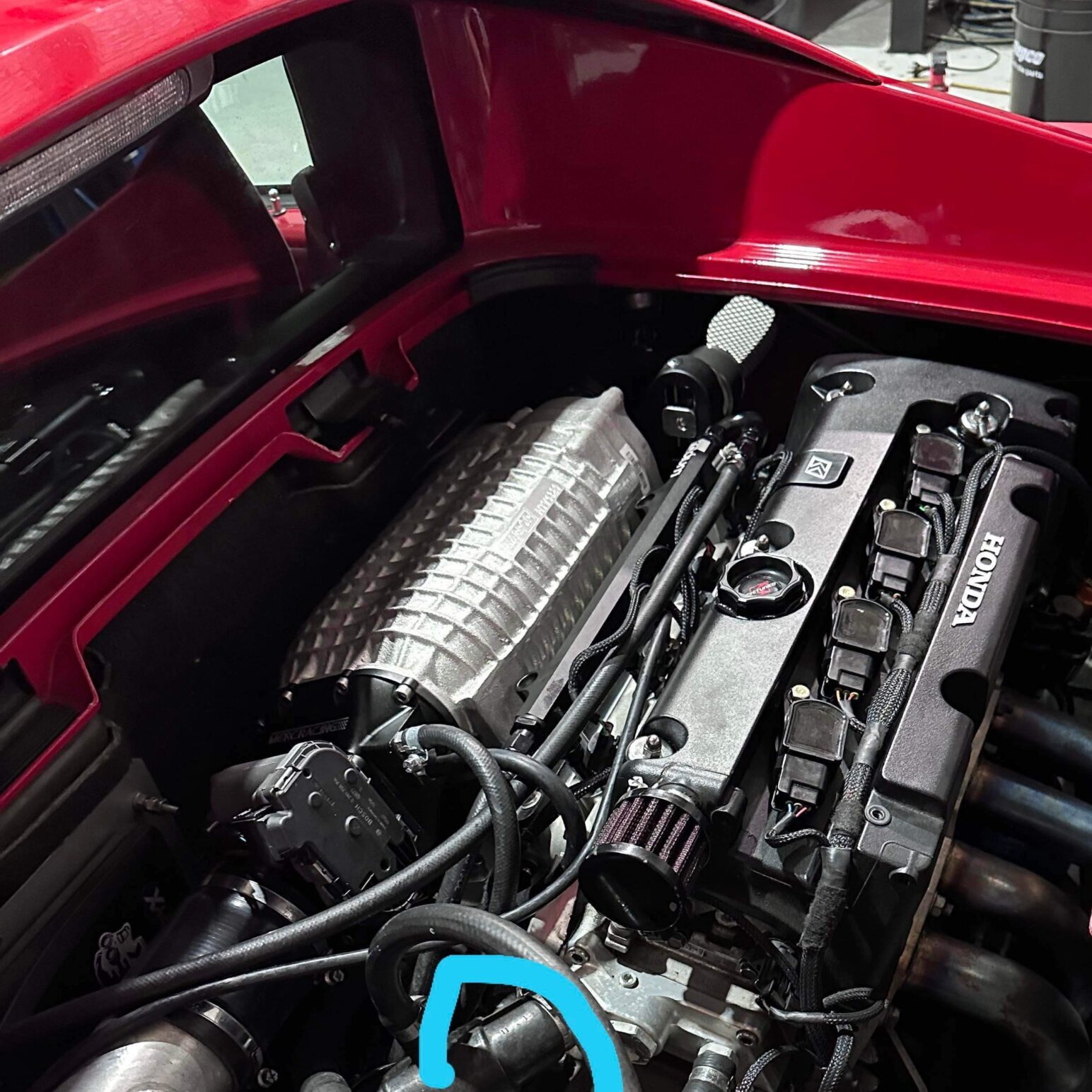

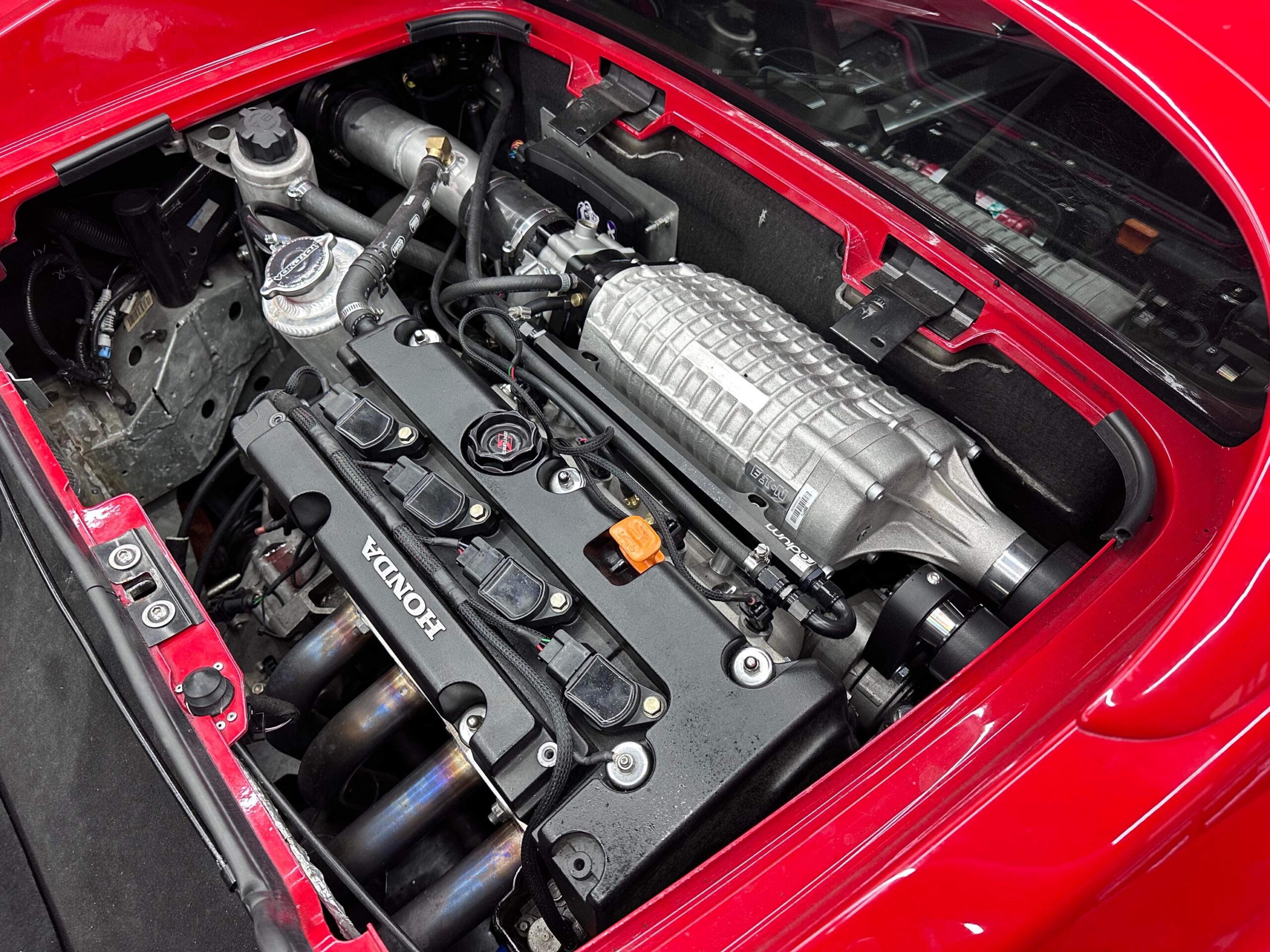

MR1320 TVS Supercharger Kit For Lotus Elise

Description

 KIT INCLUDES:

• Complete MR1320 TVS supercharger kit with billet 3.2 pulley.
• Preinstalled Intercooler – Air to Water Cooling system
• High quality finish CNC inlet – ready for Stock thru 74mm throttle bodies
• Billet blower adapter and mounting hardware
• Adjustable Tensioner system

Notes:

It is required to purchase the TOYONDA engine mounts.  These mounts correctly position the Kseries engines on the Lotus Elise vehicle.
Here is the link to the product: https://toyonda206.com/shop/ols/products/lotus-eliseexige-k-swap-engine-mount-kit-pre-sale

You must replace the thermostat housing with one that points downwards. Such as the Acura RSX Type S. for some vehicles; such as the Civic 8th Generation.  This provides clearance for the manifold and puts heat away from the manifold.

• Thermostat Housing Part#: 19320-PNA-003    –   Thermostat Part#:  19301-PNA-003
• PLEASE, Upgrade your spark plugs to range 8 and anything over 15 psi, go with 9 range sparkplugs.

1. We urge you to upgrade your thermostat housing and thermostat to the 2005-2006 RSX Type S.  The K24Z7 runs pretty hot stock
   • Thermostat Housing Part#: 19320-PNA-003    –   Thermostat Part#:  19301-PNA-003
2. Order this for your 9th Gen civic throttle to extend the throttle harness:
3. Upgrade your spark plugs to range 8 and anything over 15 psi, go with 9 range sparkplugs.
