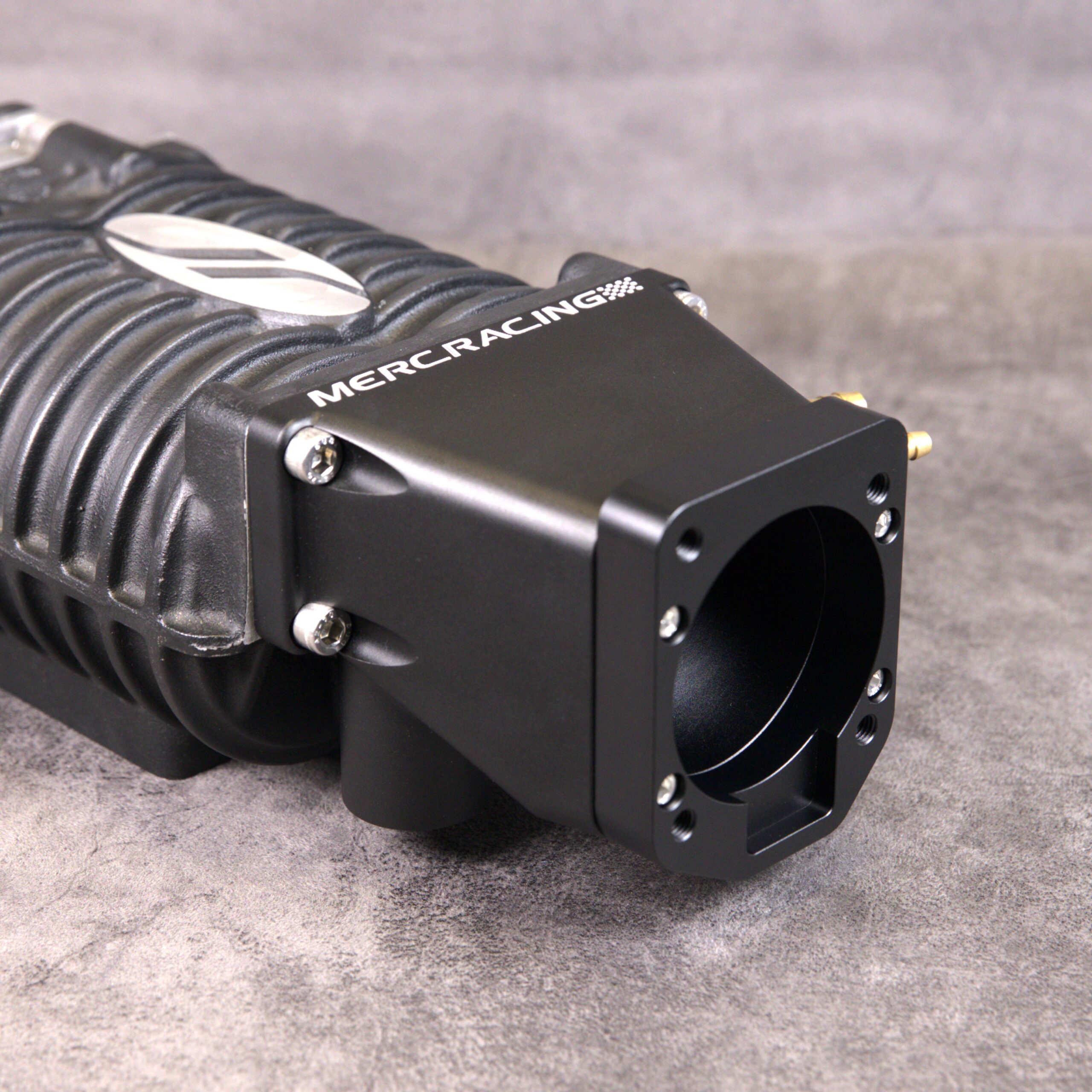

Modular highflow inlet – JRSC M62
$369.99
-
Share this:

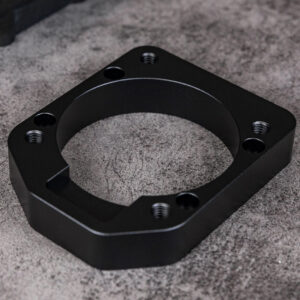

This unit is ported to 74mm allow the use of OEM or larger aftermarket throttle bodies with included adapter plate of your choice.
Benefits:
- Ability to upgrade throttle body without having to use spacers.
- Increased and smoother air flow due to its larger and direct path from throttle body to supercharger
- Hidden vacuum lines at the bottom for a clean look
- Increases power by allowing unrestricted airflow
NOTE: For RSX vehilces / with idle control valve on throttle body. Please look at this link for a way to better install the Idle control valve for better clearance.
Weight | 5 lbs |
---|---|
Dimensions | 6 × 6 × 6 in |
Throttle Body Adapter | Civic 8th Gen, J37/ZDX, RSX |
1 review for Modular highflow inlet – JRSC M62
You must be logged in to post a review.
Related products
-
Quick View
CT Engineering High Flow Modular Inlet
$364.99Select optionsThis unit is properly sized to standard OEM, larger OEM and aftermarket throttle bodies. Increase power as much as 40hp on drive by wire when paired with a J37 throttle body. Â Click here for Dyno video Adapter plate is included. Select the needed plate. The designed profile enhances air flow distribution to the supercharger intake. …
Add to WishlistAdd to Wishlist -
Quick View
Jackson Racing M62 Conversion Kit 8th 9th Gen Civic Si
$1,745.00$1,595.99Add to cartThis conversion kit allows for you to use the older Jackson Racing M62 supercharger. The approximate processing time for this product is 2-3 weeks.
Note this is verified compatible with 8th Gen Civic Si and 9th Gen Civic Si.
Cannot be used on RSX or EP3.
Add to WishlistAdd to Wishlist
thebettersol –
Setup: Stock bottom end k20a2, k20a2 head with IPS-SC cams and eibach valve springs, un-ported m62 jrsc, stock a2 throttle body, hybrid racing CAI, hytech header and 3″ exhaust.
Added Merc Racing modular high flow inlet and gained 11whp/7tq at the peak @10.5psi @ 8700rpm. However the most beneficial gains were in the midrange where I put down over 20 ft/lbs more torque sooner and throughout the midrange. The inlet significantly shifted the boost curve lower into the rpm range moving my 150ft/lbs to the ground mark from 3,800 rpm to 3,200 rpm compared to using the stock JRSC inlet.
Peak numbers on this setup WITH the Merc racing inlet were 304/197 @8,700 rpm non-aftercooled and tuned for road racing (conservative) reliability.
This inlet is probably one of the best bang-for-the-buck mods out there as it was proven effective throughout the rpm range.
J Mercado Y –
Thanks for the review and testing. It is a truly fantastic upgrade. Glad you did it and enjoying the benefits.
